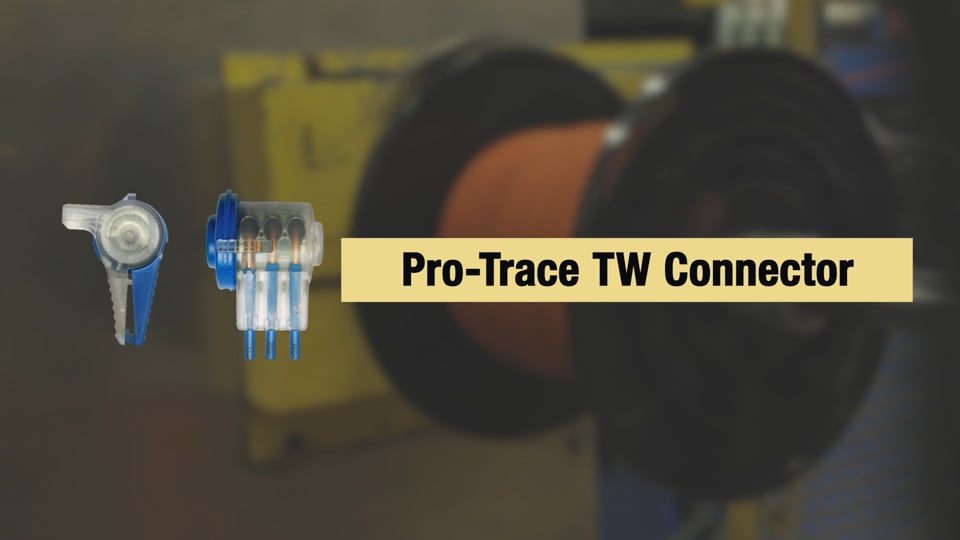

Pro-Trace TW Connector was engineered specifically for tracer wire. The silicone filled connector is used to splice or branch-off multiple tracer wires to maintain continuity, and it provides superior performance and strength compared to other connectors.
Gauge Size:
10 AWG | 12 AWG | 14 AWG | 16 AWG
Color:
Temperature Rating:
221°F
Silicone Sealant Temperature Range:
-40°F to 400°F
Maximum Voltage:
300 Volts
Environment:
Outdoor, Underground
Environmental Protection:
Corrosion Resistant, Impact Resistant, Moisture Resistant, Waterproof
Application:
Locating
Industry:
Electric, Oil & Gas, Telco, Water, Other
| Gauge Size | Copper | Pro-Trace® HF-CCS | Pro-Trace® HS-CCS | SSAC-T304 |
| 16 AWG | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires |
| 14 AWG | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires |
| 12 AWG | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires | 1 – 3 Wires |
| 10 AWG | 1 – 3 Wires | No | No | 1 – 3 Wires |
| Gauge Size | PVC / NYLON | PVC | LDPE, HDPE, XLPE |
| 16 AWG | TFN or TFFN | LV – UF | PE30, PE45 |
| 14 AWG | THHN or THWN | TW, UF, THW, TWU | PE30, PE45, XHHW-2, USE-2 |
| 12 AWG | THHN or THWN | TW, UF, THW, TWU | PE30, PE45, XHHW-2, USE-2 |
| 10 AWG | THHN or THWN | TW, UF, THW, TWU | PE30, PE45, XHHW-2, USE-2 |
Step 1:
Open wings handles to 90 degree position.
Step 2:
Strip wires to 5/8”. Use the strip guide molded into the connector for reference.
Step 3:
Insert striped wires into connector. The striped ends of the wires should be visible through the clear housing on the back.
Step 4:
Hold wires in place while squeezing handles together until the latch snaps shut.
