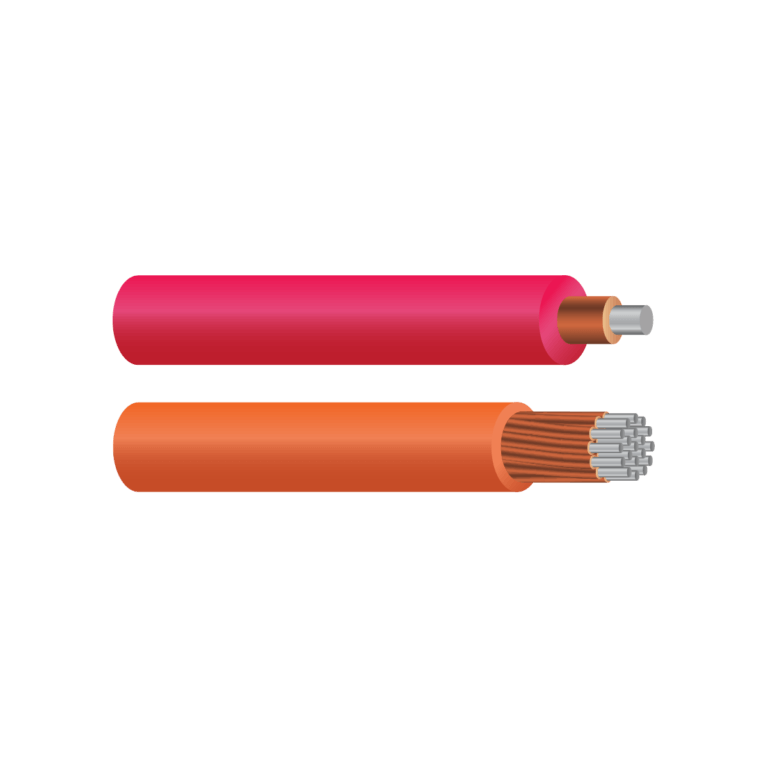

Pro-Trace HDD-CCS PE45/PE50

Details

Conductor Core Material:
Extra High-Strength Copper Clad Steel (EHS-CCS)
Conductor Core Type:
Solid | Stranded
Gauge Size:
4 AWG | 8 AWG | 9 AWG | 10 AWG | 12 AWG | 14 AWG
Reel Size:
500’ | 1000’ | 2500’ | 5000’
Insulation Material:
High-Density High Molecular Weight Polyethylene (HDHMWPE)
Color:
Insulation Thickness:
45 mil | 50 mil
Environment:
Outdoor, Underground
Environmental Protection:
Abrasion Resistant, Chemical Resistant, Crush Resistant, Impact Resistant, Moisture Resistant, Oil Resistant
Application:
Locating
Industry:
Electric, Oil & Gas, Telco, Water, Other
Compliance:
AIS, APWA Color Code, ASTM Standards, BABA Act, National Electrical Code, RoHS, UL Standards

Insulation (Physical, Mechanical and Electrical Properties)
Test Description	ASTM Standard	Typical Values
Density @ 23°C	ASTM D1505	0.945 g/cm³
Melt Flow Rate	ASTM D1238	0.70 g/10 min
Tensile Strength	ASTM D638	3,400 psi
Tensile Strength Retention	ASTM D638	90% after 48 hours @ 100°C
Tensile Elongation	ASTM D638	500%
Tensile Elongation Retention	ASTM D638	90% after 48 hours @ 100°C
Environmental Stress Cracking	ASTM D1693	0 failures @ 48 hours
Thermal Stress Cracking	ASTM D2951	0 failures @ 96 hours
Brittleness Temperature	ASTM D746	-76°C
Melting Temperature	ASTM D3418	260°C
Oxidative Induction Time	ASTM D3895	170 min @ 200°C
Dielectric Constant	ASTM D1531	2.32 @ 1 MHz
Dissipation Factor	ASTM D1531	0.00006 @ 1 MHz
DC Volume Resistivity @ 23°C	ASTM D257	> 1 x 10¹⁵ ohm-cm

Ordering Information (Weights, Measurements, and Packaging)
Part #	Gauge Size	Conductor Core Type	Insulation Thickness	Outer Diameter	Weight (Per 1,000′)	Reel Sizes
74641XXXX	14 AWG	Solid	0.045” (45 MIL)	0.154”	17.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
74642XXXX	12 AWG	Solid	0.045” (45 MIL)	0.171”	26.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
74643XXXX	10 AWG	Solid	0.045” (45 MIL)	0.192”	37.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
74649XXXX	9 AWG	Solid	0.045” (45 MIL)	0.205”	45.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
74644XXXX	8 AWG	Solid	0.045” (45 MIL)	0.219”	55.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
74646XXXX	4 AWG	19 Strands	0.050” (50 MIL)	0.313”	110.0 lbs	500′ \| 1,000′ \| 2,500′ \| 5,000′
