MTS Connectors or Mainline-to-Service Connectors are perfect for connecting your main line tracer wire to service lines such as fire hydrants and gas meters. These connectors eliminate the need to cut the main line, minimizing the risk of shrinkage-related connection issues.
Types:
Standard | Self-Stripping | Pipe Burst
Color:
Environment:
Outdoor, Underground
Environmental Protection:
Corrosion Resistant, Waterproof
Application:
Locating
Industry:
Electric, Oil & Gas, Telco, Water, Other

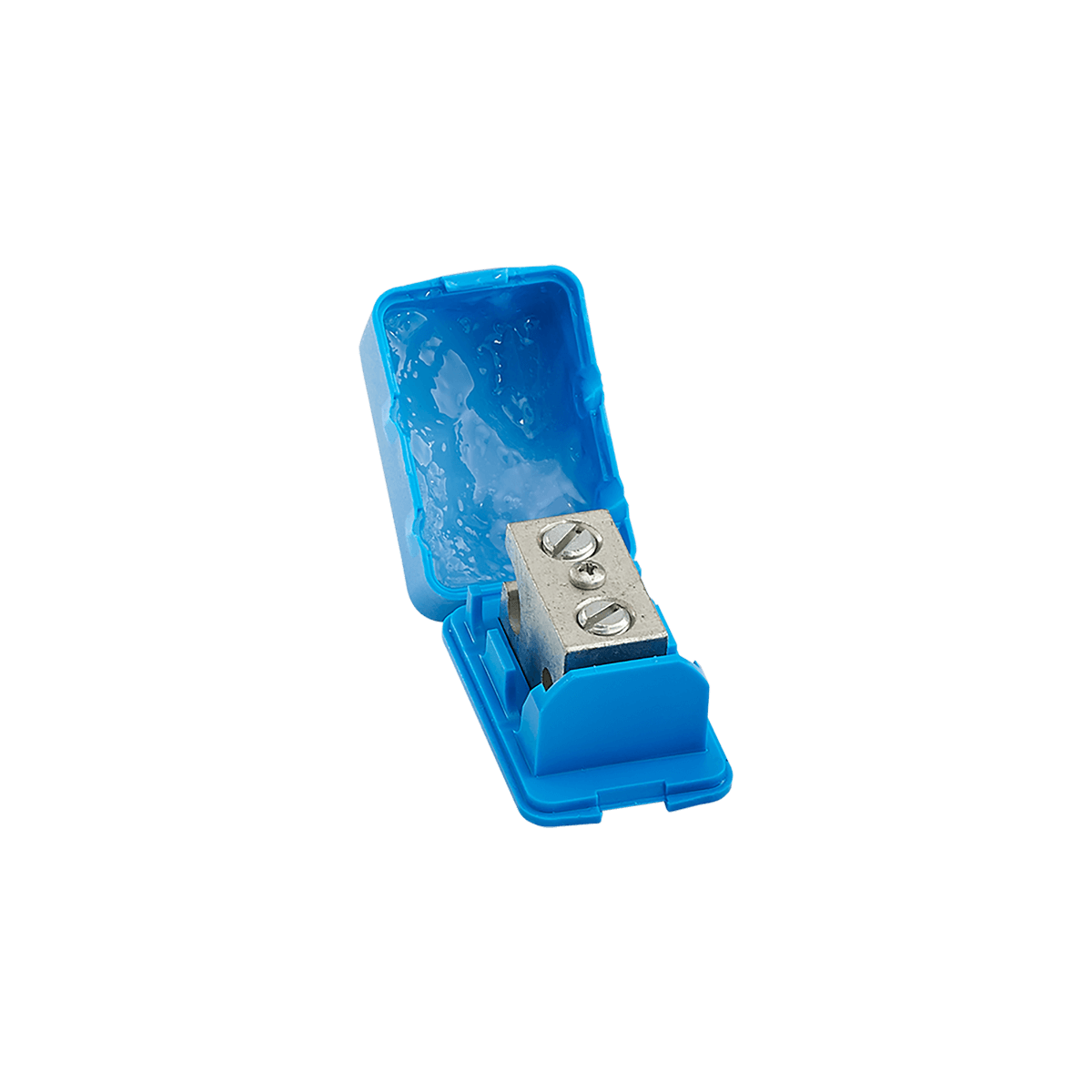

Standard MTS Connector:
Works with 10 AWG, 12 AWG, and 14 AWG wires.

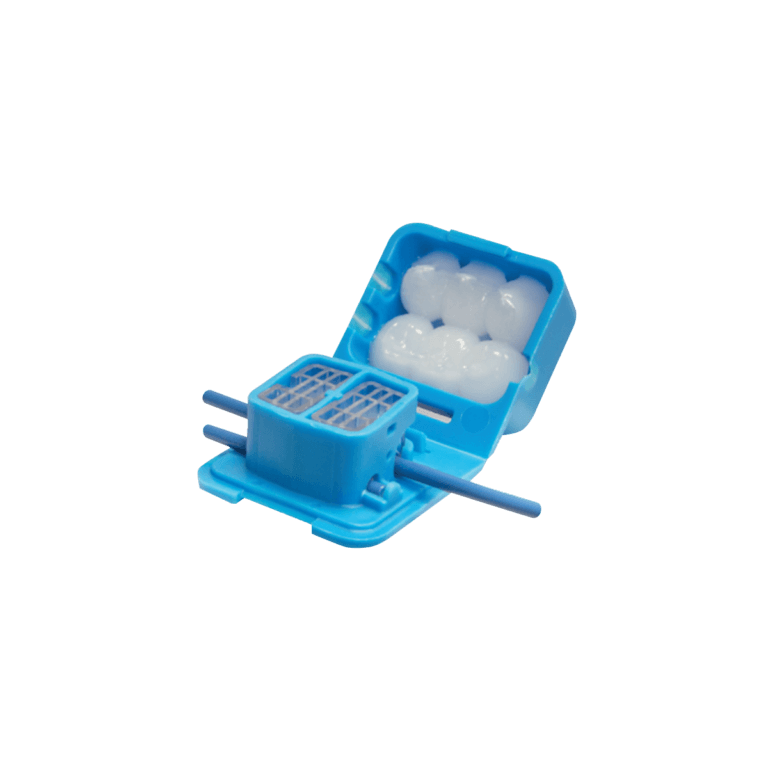

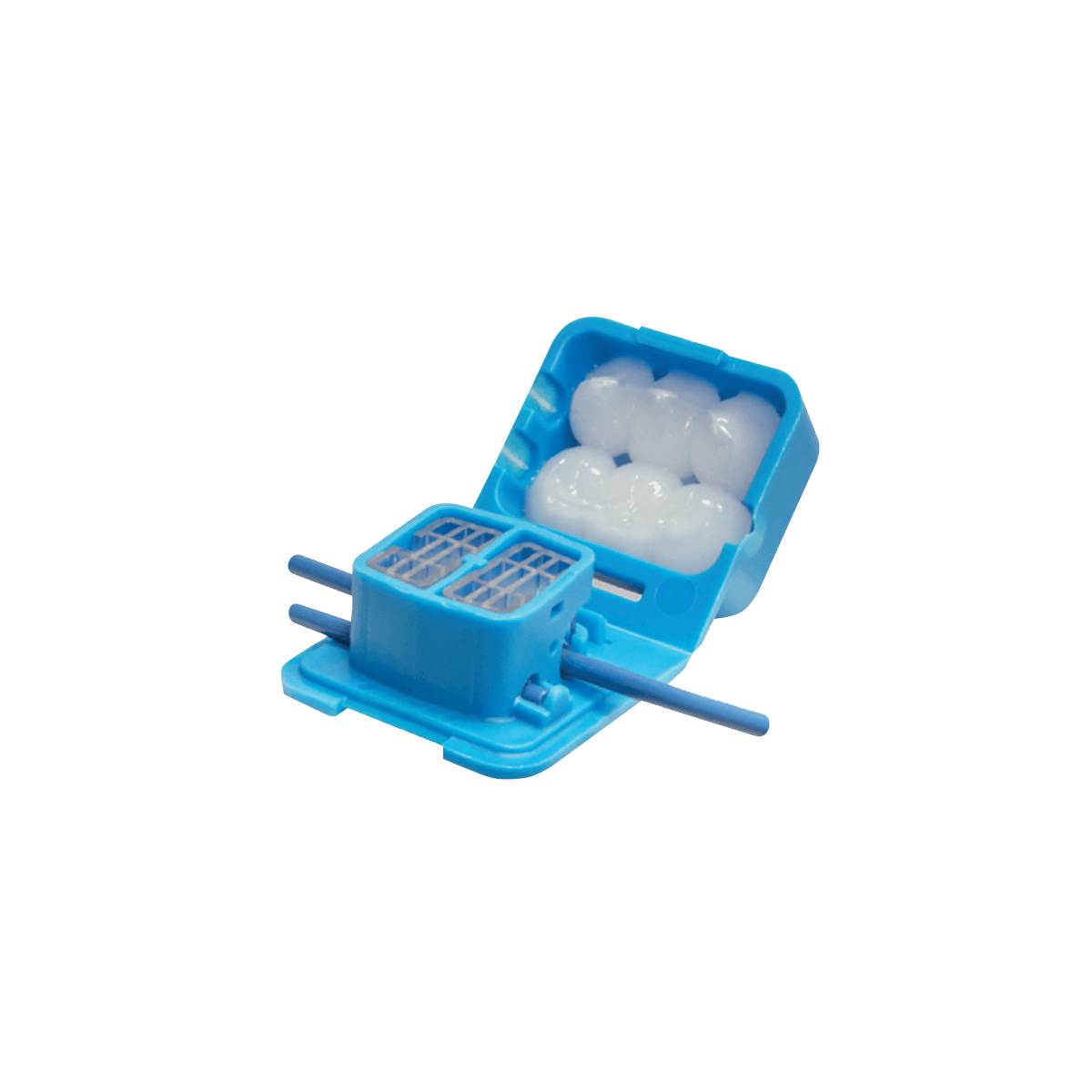

Self-Stripping MTS Connector:
Works with 12 AWG, and 14 AWG wires. Doesn’t require wire stripping.

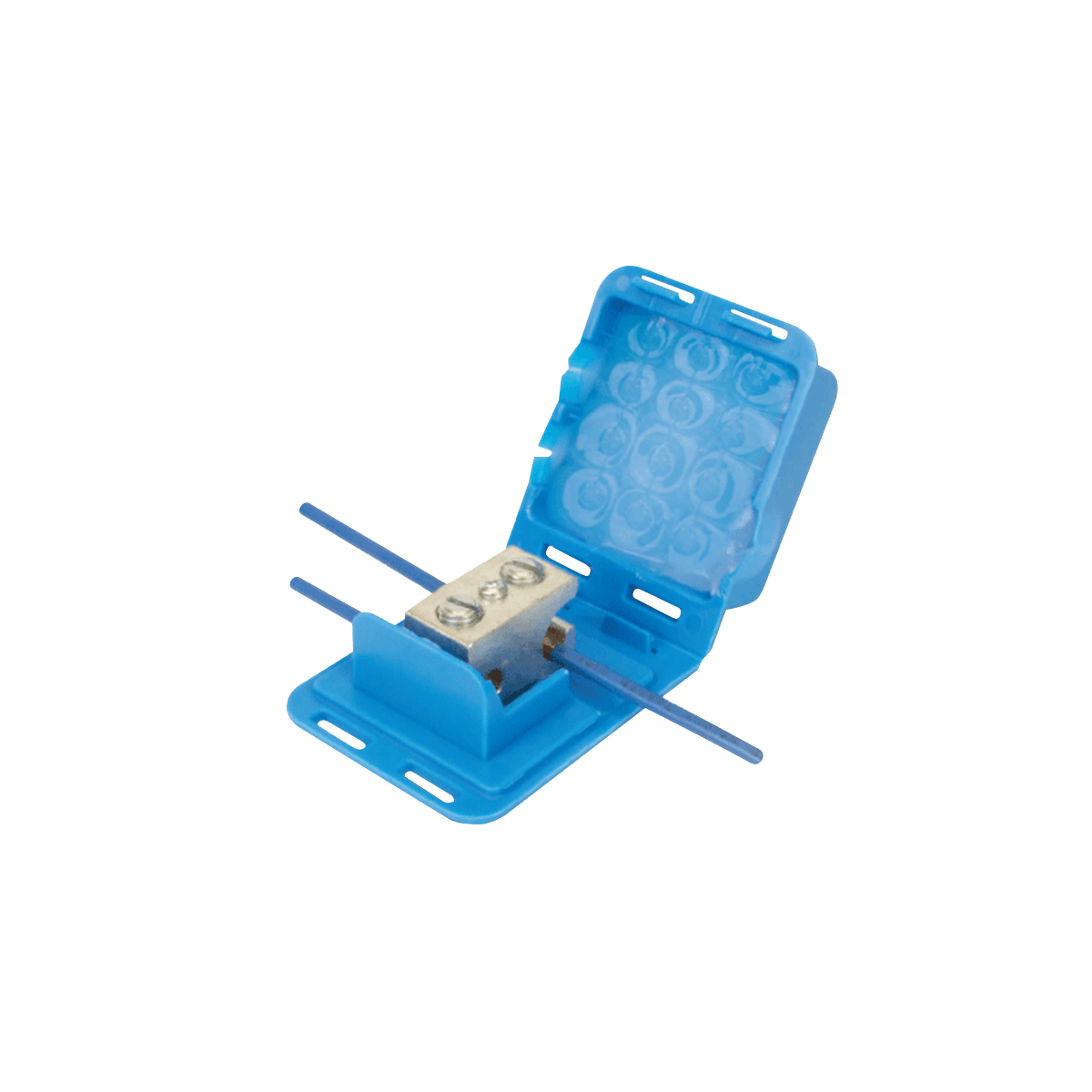

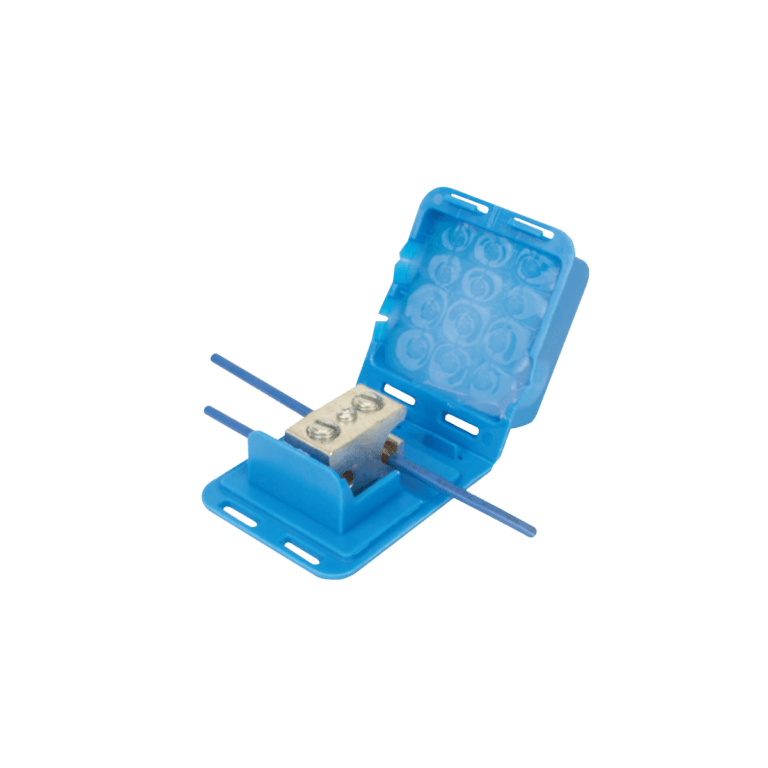

Pipe Burst MTS Connector:
Works with 8 AWG, 10 AWG, 12 AWG, and 14 AWG Solid Copper. Works with 6 AWG, 8 AWG, 10 AWG, 12 AWG, and 14 AWG Stranded Copper. Works with 10 AWG, 12 AWG, and 14 AWG CCS.
Standard Installation:
Strip 3/8″ of the jacket from both the main line where they will be making contact with the connector. Strip the same amount from the end of the service wire you will be placing in the connector. Tighten the screw until you feel contact and then give it an additional quarter of a turn. Remove the cover to the gel and close the connector.
